Understanding Voltage Conversion

1. Why We Need Voltage Conversion

Ever wondered why your car's cigarette lighter (or, more accurately these days, the 12V auxiliary power outlet) can't directly charge your phone? The answer, in a nutshell, is voltage. Most electronics, especially those powered by USB, run on 5V. Your car, however, provides a hefty 12V. Plugging a 5V device into a 12V source is like trying to sip a drink from a firehose — it's just too much! This is where the art of voltage conversion comes into play.

Think of it like this: you've got a strong river (12V) that you need to divert into a small irrigation ditch (5V device). You can't just dump the whole river in there; you need a system to regulate the flow. In electrical terms, we need a circuit to regulate the voltage.

Dropping 12V to 5V allows us to safely power our sensitive gadgets, like smartphones, tablets, and even those fancy LED strips you've been eyeing. Without this conversion, we risk frying our beloved electronics with excessive voltage. Nobody wants a smoking gadget, right?

This process isn't just about preventing damage; it's also about efficiency. Different devices require different power levels to function optimally. Providing the correct voltage ensures that your devices run smoothly and efficiently, maximizing their lifespan and performance.

The Resistor Method

2. Resistors

Okay, so let's talk about the simplest way to reduce voltage: using a resistor. Imagine a resistor as a tiny speed bump for electricity. It resists the flow of current, and in doing so, drops the voltage. Sounds perfect, right? Well, not quite.

The problem with using resistors alone is inefficiency. Resistors work by converting excess electrical energy into heat. So, instead of your phone getting all that extra juice, it's just warming up a little piece of ceramic. This wasted energy means shorter battery life for your car and a hotter circuit — not ideal!

To calculate the correct resistor value, you'd need to know the current draw of your 5V device. Then, you'd use Ohm's Law (V = IR) to determine the resistor value needed to drop the voltage. This involves a bit of math and careful consideration of power dissipation.

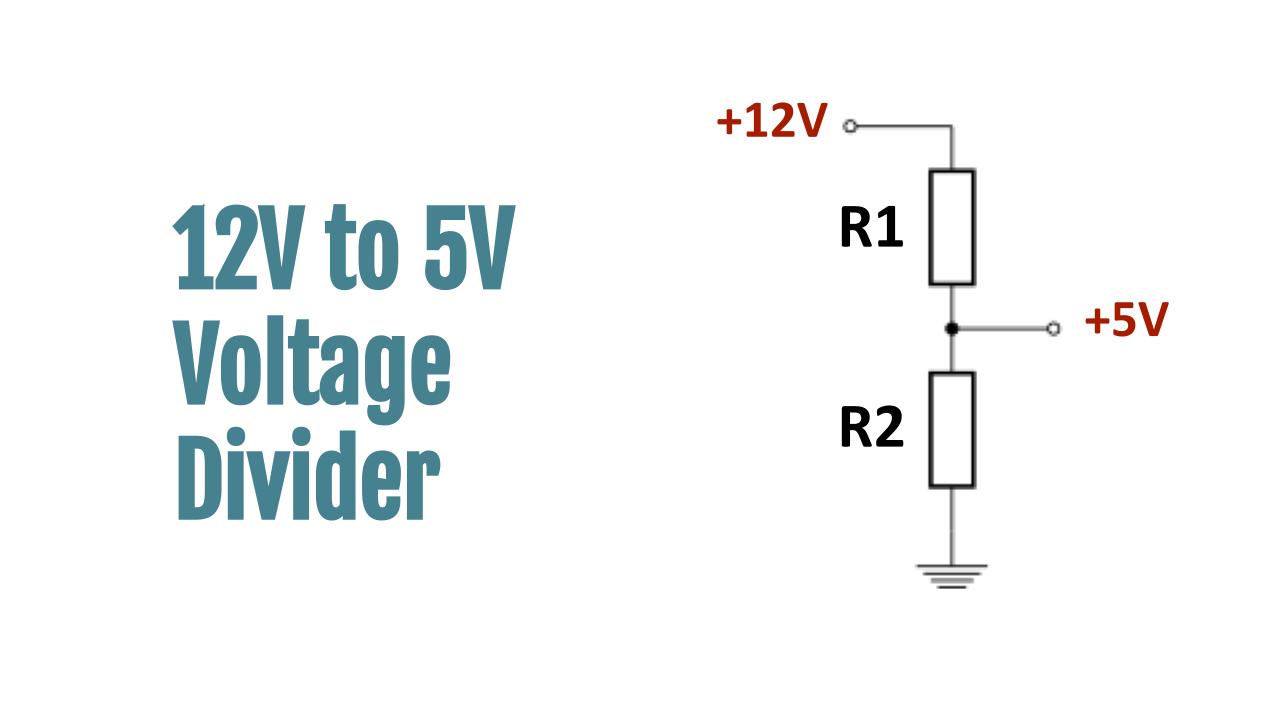

While a resistor divider circuit can work in a pinch, it's generally not recommended for anything other than very low-power applications. For most modern devices, you'll want a more efficient solution. Think of it as using a hammer to crack a nut: technically it works, but there are far better tools for the job!

Voltage Regulators

3. Linear Regulators vs. Switching Regulators

Enter the voltage regulator, the superhero of voltage conversion! These little devices are designed to efficiently drop voltage without wasting excessive energy as heat. There are two main types of voltage regulators: linear regulators and switching regulators.

Linear regulators, like the popular LM7805, are relatively simple and inexpensive. They work by dissipating the excess voltage as heat, similar to resistors, but in a more controlled and efficient manner. While they are better than simple resistors, they still have limitations in terms of efficiency, especially when the voltage drop is significant (like from 12V to 5V).

Switching regulators, on the other hand, are much more efficient. They use a technique called "pulse-width modulation" (PWM) to rapidly switch the current on and off, effectively chopping the 12V input into smaller chunks that average out to 5V. This method minimizes wasted energy, making switching regulators the preferred choice for most applications.

Choosing between a linear and switching regulator depends on your specific needs. For small, low-power projects where efficiency isn't critical, a linear regulator might suffice. However, for anything that requires higher efficiency or a significant voltage drop, a switching regulator is the way to go. Think of it as choosing between a bicycle and a car — both get you from A to B, but one is much more efficient for longer distances.

Choosing the Right Voltage Regulator

4. Key Specifications to Look For

So, you've decided to use a voltage regulator. Great choice! But with so many options available, how do you choose the right one? Here are some key specifications to consider:

Input Voltage Range: Make sure the regulator can handle the 12V input from your car. Most regulators will have a maximum input voltage rating. Exceeding this rating can damage the regulator.

Output Voltage: This should, of course, be 5V! Double-check this specification before purchasing.

Output Current: This is the maximum current that the regulator can supply to your device. Choose a regulator with a current rating that is higher than the maximum current your device requires. It's always better to have some headroom.

Efficiency: Especially important for switching regulators. A higher efficiency rating means less wasted energy and longer battery life.

Package Type: Regulators come in various packages, such as TO-220, SOIC, and SMD. Choose a package that is easy to work with for your project. For beginners, a TO-220 package is often a good choice as it's easy to solder.

Protection Features: Some regulators have built-in protection features, such as over-current protection and thermal shutdown. These features can help protect your circuit from damage in case of a fault.

Building Your 12V to 5V Converter

5. Step-by-Step Instructions

Alright, let's get our hands dirty and build a simple 12V to 5V converter using a switching regulator. For this example, we'll use a common and inexpensive switching regulator like the LM2596. You'll need a few basic components:

A Switching Regulator (LM2596 is a good start)

Input and Output Capacitors: These smooth out the voltage and improve stability. Typically, you'll need a ceramic capacitor (e.g., 100nF) and an electrolytic capacitor (e.g., 100uF) for both input and output.

An Inductor: This is a crucial component in switching regulators. The value will depend on the specific regulator you choose. Consult the datasheet for the recommended inductor value.

Resistors (Optional): Some regulators require external resistors to set the output voltage. Again, consult the datasheet.

A Breadboard or Perfboard: For prototyping and building the circuit.

Connecting Wires: To connect all the components.

Soldering Iron and Solder (if using perfboard):

First, consult the datasheet for your chosen regulator. The datasheet will provide a schematic diagram showing how to connect all the components. Follow the schematic carefully, placing the components on the breadboard or perfboard. Pay close attention to the polarity of the electrolytic capacitors!

Once everything is connected, double-check your wiring before applying power. A mistake in wiring can damage the regulator or your connected device. Connect the 12V input to the input terminals of the regulator and use a multimeter to measure the output voltage. It should be close to 5V. If it's not, double-check your wiring and component values.

And that's it! You've successfully built a 12V to 5V converter. Now you can safely power your 5V devices from your car's 12V power outlet. Remember to always exercise caution when working with electricity and to consult the datasheets for your chosen components.
